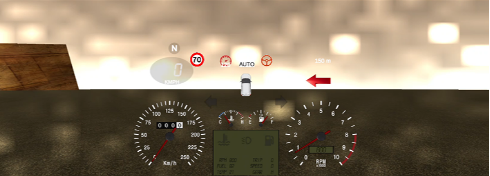

Implemented a Head Up Display System Integration: synthetic variable signals, GLSL pre-warp, and a tiled local dimming algorithm with alpha blending in linear space. No physical sensors (camera/IMU) or vehicle bus were used; all signals and optics effects were simulated in software. Developed in 2024 as the Capstone for Automotive Simulation Project by a teammate of 4.

Role: end-to-end software implementation — scene/data simulators, calibration, blending/tonemapping, shader pipeline, QA tools.

• Tech Stack

  C#/C++ HSML OpenGL/GLSL OpenCV (simulation) Git
  Code: Find it here


• Software Architecture

  1) Synthetic Data: speed/turn/alerts are procedurally generated with noise & timing jitter for repeatable tests.
  2) Scene Graph: HUD widgets (speed, turn cues, warnings) with Z-ordering and timeline states.
  3) Calibration: virtual checkerboards → homography (plane mapping) + radial/tangential distortion fit → pre-warp map.
  4) Renderer: FBO → GLSL warp (barrel/tangential) → local dimming map → alpha blending → composited output.



• Local Dimming Algorithm (Software)

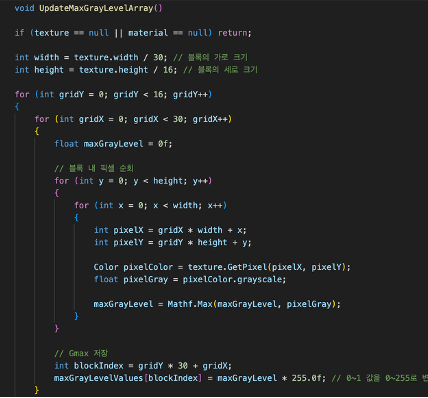

  We implemented a software local dimming stage to enhance contrast and readability of HUD graphics over varying backgrounds. The frame is split into tiles; for each tile we estimate the background luminance and drive a per-tile backlight factor. To avoid halos and flicker, we applied spatial/temporal smoothing and brightness clamps.

  Pipeline: linearize (γ⁻¹) → downsample → per-tile luminance L_bg (max/percentile/mean) → smooth (Gaussian + EMA) → compute backlight B = clamp( a·L_bg + b ) → upsample → modulate foreground.

  Key details: linear domain for all math; a/b from calibration; EMA hysteresis for stability; guard bands near UI glyphs to protect edges.



• Alpha Blending & Compositing

  HUD glyphs and widgets are composited using premultiplied alpha in the linear color space: C_out = C_fg + (1 - α_fg) · C_bg. We generate foreground in SDF (signed-distance-field) for crisp scalable text, convert sRGB→linear before blending, then linear→sRGB at the end. Alpha ramps (ease-in/out) are used for readable transitions without flicker.

  To preserve contrast after local dimming, the foreground intensity is re-normalized by the per-tile backlight factor while keeping α consistent, avoiding washed-out edges.

• Linear / Gamma Handling

  All tone and blend math run in linear space: C_lin = (C_srgb)^{γ}, with γ≈2.2. After local dimming and blending, we apply the inverse (linear→sRGB) and an optional display LUT for gamma/contrast trims. This prevents “double gamma” artifacts and keeps small text legible.



• Key Challenges & Debugging

  • Haloing near glyphs: reduced tile size around HUD UI; added edge guards and alpha-aware normalization.
  • Banding in low luminance: dithered LUT + slight noise before γ; improved gradient smoothness.
  • Shear in warp grid: fixed vertex stride/UV normalization; removed geometric artifacts in pre-warp.

• Demo

  Add a local demo video below (use .mp4 for best compatibility; you may include a .mov fallback).

Code: GitHub Repository
